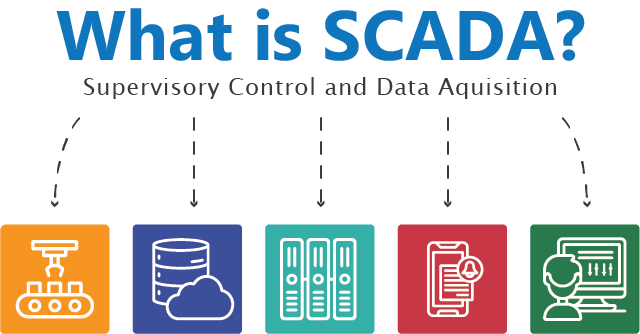

Supervisory Control and Data Acquisition (SCADA) is a control system architecture that includes various software and hardware elements such as computers, data communications, peripheral devices, and controllers that interface with machinery.
If you’re still wondering, “What is SCADA?” think of it as the digital nervous system for manufacturing plants, utilities, and other complex operations.
SCADA systems let operators manage equipment either on-site or remotely. They gather data from sensors, controllers, and human-machine interfaces (HMIs), giving teams a clear view of what’s happening and helping them respond quickly when needed. Whether you’re overseeing a factory floor or a city’s water system, what is a SCADA system if not a key piece of today’s automation puzzle?
Define SCADA: Core Functions and Architecture
To define SCADA, it helps to start with the basics. At its core, SCADA is all about four main things:
- Supervising industrial equipment
- Controlling operations remotely
- Gathering real-time data
- Storing and analyzing historical trends
A full SCADA system typically includes these key components:
- Sensors and Inputs: Pick up real-world data from machines and environments.
- PLCs and RTUs: Convert and send that data where it needs to go.
- HMIs: Provide a user-friendly way for people to interact with the system.
- Data Historians: Keep a detailed record of everything for tracking and analysis.
Each part works together to keep things running smoothly, catch problems early, and help operators make smart decisions fast.
What Does a SCADA System Look Like?
Most SCADA architecture consists of programmable logic computers (PLCs) or remote terminal units (RTUs). These are systems that can communicate with different objects within a factory or manufacturing plant. The information is then sent to computers with SCADA software, which can then process and display the information. This can be used to trigger automated actions or human interventions.
For example, a SCADA system can be configured to alert an operator if multiple sensors are failing or systems are acting outside a defined margin of error. The operator can remotely pause the processes involved and then use the SCADA system data to determine the cause of the issue.
Once the operator has reviewed the data and discovered the issue, they can manually resolve the fault or reboot the system to fix any potential errors. By looking at the log file for that particular faulty component, the operator can get a better understanding of what caused the problem and how it can be fixed in the future. That’s the power of SCADA in action.
By establishing systems like this, manufacturing and industrial plants can drastically improve performance, reduce the loss of product, and make it easier for operators to manage their plants with fewer employees.
Where Does OAS Fit In?
OAS plays a pivotal role in modern SCADA systems by offering:
With OAS, your SCADA architecture becomes smarter, faster, and easier to manage.
The Components of a SCADA System
To gain a better understanding of SCADA, it helps to understand the individual components that make up a system.
Inputs and Sensors
Inputs and sensors are the first component of a SCADA system and are integral to the overall functionality. These inputs and sensors are essentially used to pick up data that is sent to various other components of the SCADA system.
Sensors can generally be anything that needs to be monitored. For instance, sensors can be used to detect pressure within a pipe, monitor temperatures, or even measure the direction of the wind.
Inputs involve anything that humans will touch or interact with. It can mean basic two-state on/off switches, a joystick that controls a robotic arm, or even adjust something more precisely, such as the temperature of another device.
These devices act as the eyes and ears of a SCADA system.
PLCs and RTUs
PLCs and RTUs are used to collect data from inputs and sensors. They can then convert the data into information that is used by the SCADA system. It’s often translated into something much easier for operators to understand.
For example, a computer will only understand a switch as having two states: 0 and 1. PLCs and RTUs can be programmed to understand 0 as “Off” and 1 as “On”. This can then be used to display the state of a machine as on or off to the operator instead of 0 and 1, making it a bit easier to read. This is just a very simple example of how PLCs and RTUs translate data into something much easier to understand.
As another example, a rotating device could have hundreds of states depending on how much it has turned, and its current position could be expressed as a number based on a relative angle.
If that number increases, then it could indicate that the device is being rotated clockwise, and the PLC can be programmed to display this to the operator as “Right” or “Clockwise”, and vice versa as “Left” or “Anti-Clockwise” if the value is decreasing. This could help operators understand if an exhaust fan is currently pushing or pulling air, which would be useful for a ventilation system.
PLCs can also send commands to inputs. This can be automated, such as opening a relief valve if there is too much pressure in a system, or it can be sent manually by the user.
Alarms and Notifications
Alerts are vital in SCADA systems. If a threshold is breached, the system can alert staff, activate fail-safes, or even shut down equipment to prevent damage.
PLCs and RTUs can be programmed to automatically send notifications or raise alarms. For example, if the pressure built up in a tank or pipe is too much, then a notification will be sent to operators, and the PLC will automatically send a command to a defined relief valve to release pressure.
However, if the relief valve cannot be opened and a disaster is imminent, then the system will raise alarms and start processes to help contain the potential damage and prevent accidents from occurring.
Notifications can also be used to get an overall idea of how a system is performing. Operators can set up SCADA notifications to give them a general idea of how the plant is performing at certain times of the day. This will help the operator check if the plant is performing well and will give them an idea of what areas to inspect if needed, or if they can focus on other tasks.
Human-Machine Interface (HMI)
An HMI tends to be a display that can be interacted with using various inputs like a keyboard, mouse, or custom buttons. The information is often displayed as numbers, but it can also be programmed to interpret data graphically as well. It can also be connected to cameras that will display the device or component that the system is monitoring.
For instance, an HMI could display a picture of a tank in a facility that is storing some kind of liquid. The HMI could display graphs showing the current volume within the tank and also contain controls that could be used to empty the tank or prevent it from losing volume.
In short, an HMI is typically used to analyze the information, but it can also be used to make data-driven decisions to optimize the production process and prevent further loss of a product should an error occur.
Historian
The final component of a complete SCADA system would be the data historian.
A historian is responsible for storing and logging all of the data that the SCADA system collects. It also records logs for certain actions that take place within the system, such as activating certain machines or sending commands to inputs from an HMI.
The purpose of the historian is to log everything that happens with the system and also create historical data for certain processes, plants, and systems. Historian systems typically sync with an online system so that operators and even shareholders can access the data from anywhere. However, a historian can also be operated locally by running it from a server PC at the plant. This PC is connected to the SCADA network and records everything that happens within the plant.
The data can be used to create actionable reports by the operator, but it can also be used to create historical data that is given to shareholders to see the process of the plant and its overall effectiveness. Historical data can also be used to identify the cause of an accident that led to a loss of product or an employee injury.
Who Uses SCADA?
SCADA is mainly used by industrial organizations and manufacturing plants that use complicated and intricate machinery to produce a large number of products or perform multiple processing tasks at once. The purpose is to help maintain large and efficient systems by recording data from multiple sensors and devices that can be used to mitigate downtime.
SCADA systems work mainly in these scenarios, but their application can be modified to be used in a number of different industries. At its core, SCADA is just a system to monitor multiple PLCs and RTUs that are being fed with data from sensors and manual inputs. In that sense, SCADA can be applied to a variety of different industries and use cases as long as there is a need to collect, compile, and analyze large sets of data at once.
As of now, SCADA systems are critical in industries such as:
- Energy and power generation
- Food and beverage
- Manufacturing
- Recycling
- Oil and gas
- Transportation
- Building management
- Water and wastewater
These are major industries that make full use of SCADA by deploying hundreds or potentially thousands of sensors and manual input devices that provide data to PLCs and RTUs.
From large industrial plants to small-scale operations like supermarket refrigeration, SCADA adapts to virtually any use case that demands monitoring and automation.
Even smart homes can use mini SCADA systems to manage climate control. For example, temperature sensors throughout the home can feed data into a controller that turns HVAC systems on or off to maintain comfort.
As you can see, SCADA systems have multiple applications on both a large industrial scale and a smaller home scale. However, its primary purpose is for use in large industrial and manufacturing operations.
SCADA Compatibility and Industry Standards
A control system architecture is only as useful as the compatibility it offers. While the concept of SCADA is simple to understand, the components used to create one need to work in harmony.
Open Automation Software’s Universal Data Connector is a great example of a SCADA component that is essential for gaining unparalleled access to industrial operations and enterprise data.
The OAS Platform supports data transport from any data source to any destination. It supports a wide variety of PLCs from reputable brands such as Allen Bradley and Siemens, and it can move data between popular cloud-based IoT services such as AWS, Azure, and MQTT brokers and clients.
For a SCADA system to be effective, flexible, and customizable, it needs to support multiple platforms, connectors, and tools. The core of any world-class SCADA system is in the connectivity between the different PLCs, RTUs, and databases. With effective automation solutions, you’ll find it much easier to manage your operations and optimize them as much as possible.
